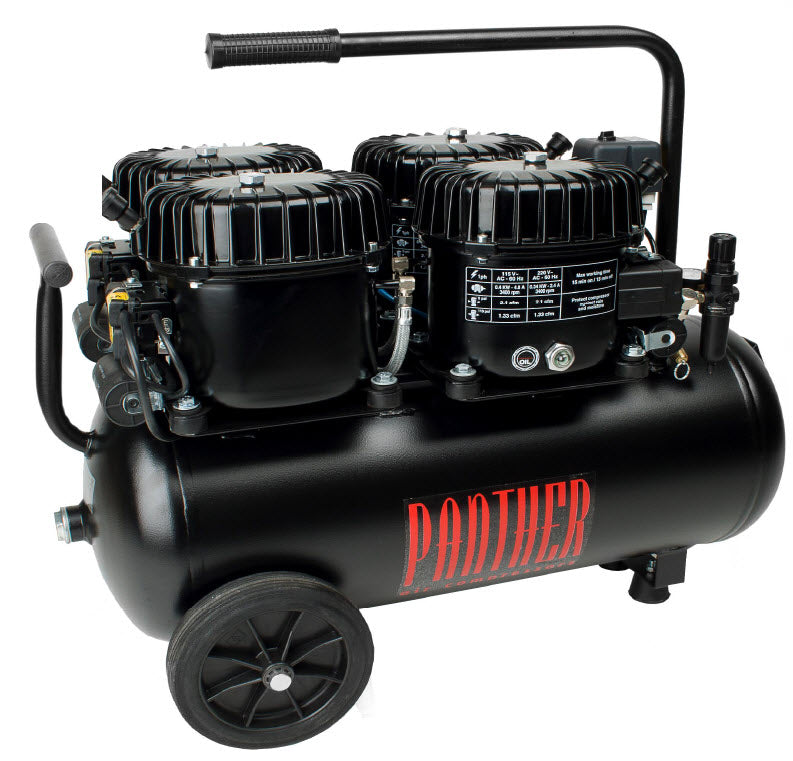

P200/50AL 220V Silent Air Compressor System with Air Treatment

The P200/50AL 220V Silent Air Compressor System is a complete compressed-air solution designed to provide reliable, quiet, and clean air for demanding medical, laboratory, dental, simulation, and professional applications. This package combines the proven P200/50AL ultra-quiet oil-lubricated compressor with a T-Dry refrigerated air dryer, coalescing filter with automatic drain, and moisture trap with automatic drain for enhanced air quality and moisture control.

The P200/50AL features a powerful 2 HP motor, delivers 8.4 CFM (240 L/min) of free-air output, and provides up to 120 PSI (8 bar) of pressure. Its 13-gallon (50-liter) internally powder-coated air tank helps provide dependable air storage while the automatic pressure switch allows the compressor to start and stop as needed. At just 42 dB(A), the compressor is engineered for quiet operation, making it particularly well suited for environments where excessive noise is undesirable.

The integrated air-treatment package provides multiple stages of moisture and contaminant control. The T-Dry refrigerated air dryer reduces moisture in the compressed-air stream, helping prevent condensation and protecting downstream equipment. The coalescing filter with automatic drain provides additional filtration of liquid contaminants and oil aerosols, while automatically removing collected condensate. A moisture trap with automatic drain provides another level of water separation and condensate management, helping deliver cleaner, drier compressed air at the point of use.

Key Features

• 2 HP ultra-quiet oil-lubricated compressor

• 8.4 CFM / 240 L/min free-air output

• 120 PSI / 8 bar maximum pressure

• 13-gallon / 50-liter air storage tank

• 220V, 50/60 Hz electrical configuration

• Approximately 42 dB(A) operating noise

• Automatic start/stop pressure switch

• Outlet pressure regulator and shut-off valve

• Tank and outlet pressure gauges

• ASME safety valve

• Internally powder-coated air tank

• Convenient top-mounted tank drain

• T-Dry refrigerated air dryer for compressed-air moisture control

• Coalescing filter with automatic drain for additional contaminant and condensate removal

• Moisture trap with automatic drain for efficient water separation

• Designed to provide a cleaner, drier compressed-air supply for sensitive downstream equipment


Ideal Applications

This complete system is well suited for nursing and medical simulation laboratories, dental applications, laboratories, medical equipment, educational facilities, and other environments requiring a dependable source of quiet, conditioned compressed air.

The combination of a low-noise compressor and multi-stage air treatment makes the P200/50AL package an excellent choice where both quiet operation and compressed-air quality are important.

Supports up to (4) headwalls simultaneously.

Specifications

• 2 HP
• 8.4 CFM
• 120 PSI Max
• 50L / 13 Gal Tank
• 220V
• 42dB(A)
• 200 lbs
